Electric Heated Tilting Jacketed kettle

[Return Home] [Go Back]

Product Name:

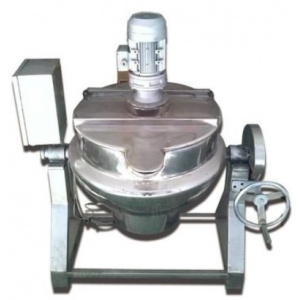

Electric Heated Tilting Jacketed kettle
Model No.:

Product Description

tilting jacketed kettle
1.kinds of heating type
2.heating uniformlly
3.tilting structure
4.agitating or not

TILTING JACKETED KETTLE

Brief introduction

Tilting jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve and electrical control box. Not only has good appearance, but also easy to install and operate. And now it has been widely applied in food processing such as candy, medicine, dairy, alcohol, cake, beverage, sweetmeat, can, etc. Some large restaurants and canteens also use it to boil soup, cook, stew and porridge. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.

Classification

1. According to Heating type: there are Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating Jacketed Kettle

2. According to Process Need: there are Jacketed Kettle with Agitating and Ones without Agitating

Structure

Vertical Jacketed Kettle is mainly composed of pot and hold feet; and the pot is the double layer structure formed by inside and outside spherical pot; middle layer can add heat-conducting oil or water.

Material

a) Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint

b) The whole machine is made of stainless steel (SUS304/SUS316L)

Usages

1.Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.

2.Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.

Technical parameters

Model	50L	100L	200L	300L	400L	500L	600L	800L	1000L
Caliber(mm)	Φ600	Φ700	Φ800	Φ900	Φ1000	Φ1100	Φ1200	Φ1400	Φ1500
Depth of Pot(mm)	400	450	530	630	680	730	780	830	900
Heating area(m2)	0.45	0.58	1.12	1.42	1.75	2	2.3	3.2	3.9
Electric power(kw)	9	9	15	18	18	24	24	27	30
Amount of heat-conducting oil(L)	30	36	45	60	70	80	100	200	250
Working pressure	≤0.09Mpa(can be adapted according to customers’ requirement )
Stirring speed	36 r/min(can be adapted according to customers’ requirement)
Stirring power(kw)	0.55	0.55	0.75	1.1	1.1	1.5	1.5	2.2	2.2

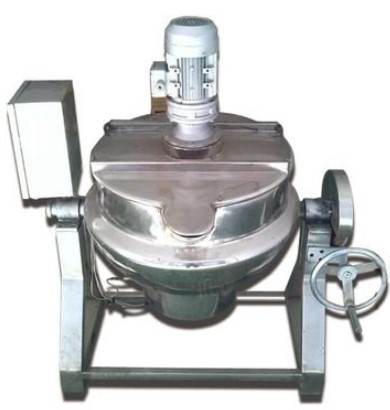

jacketet kettle 04.jpg
