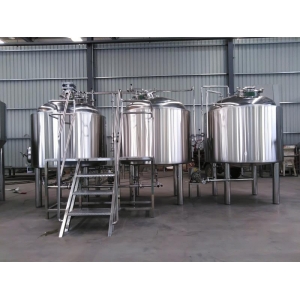

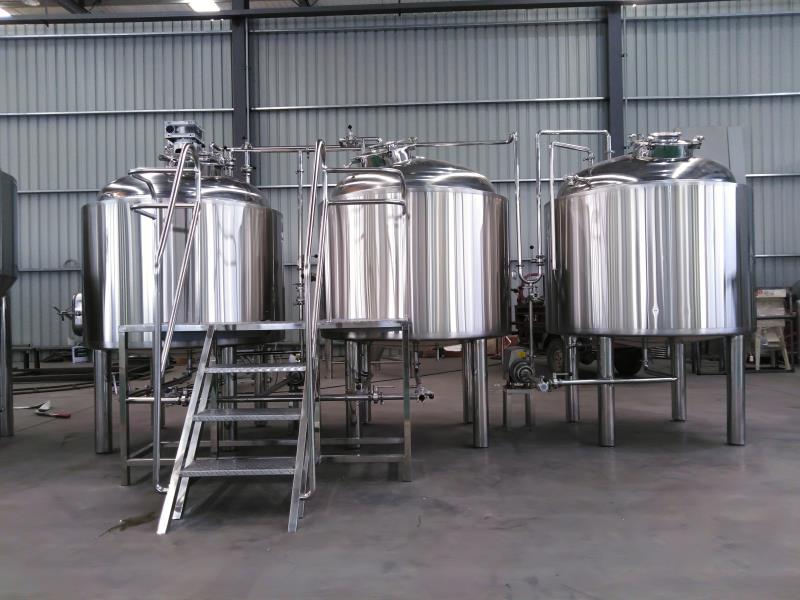

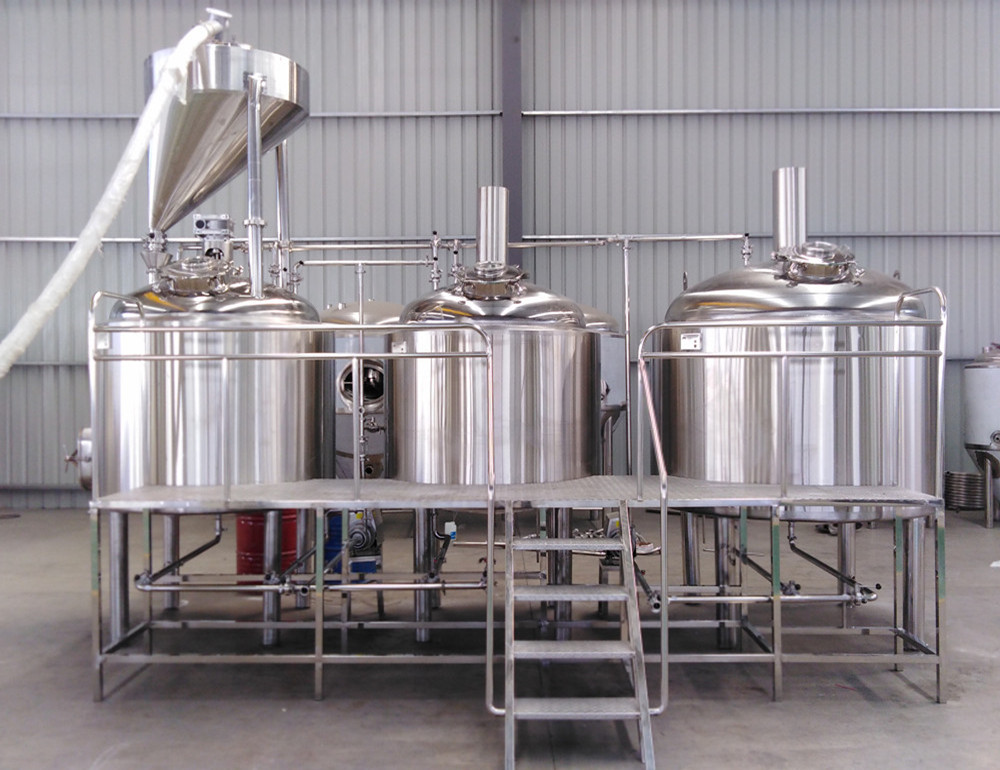

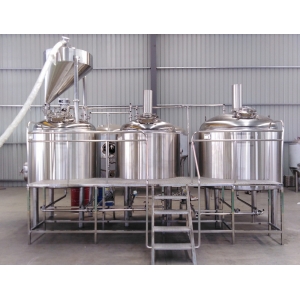

Brewhouse system

Different Combinations of brewhouse system:

-2 veseels:

Mash/lauter tun +Brew kettle/whirlpool
Mash/brew kettle+Lauter/whirlpool

-3 vessels:

Mash/brew kettle+Lauter tun+Whirlpool tun
Mash tun+Lauter tun+Brew kettle/whirlpool

Mash/lauter tun+Brew kettle+Whirlpool

-4 vessels:

Mash tun, Lauter tun, Brew kettle, Whirlpool

Optional: Hot liquor tank/Cold liquor tank

Heating method: Electricity/Steam/Direct fire

Features:

-Dome top and cone bottom;bottom cone 160 degree
-Interior Shell:SUS304,thickness:3mm
-Exterior Shell: SUS304,thickness:2mm
-Insulation:Polyurethane, thickness:100mm

-Interior Finish: Fine polishing to 0.4~0.6um without dead corner
-100% TIG welding with pure argon gas shield

-Top mounted manway

-Side manway for spent grains
-Easy-clean and detachable sparging arm
-False bottom, thickness:5mm, wedge shape, assemble and disassemble

Fermentation system

-Inside wall, SUS 304, thickness: 3mm

-Outside wall, SUS 304, thickness: 2mm

-Cooling jacket: both on cylinder and cone parts, SUS 304
-Insulation: Polyurethane, thickness:100mm
-Fine polishing without dead corner for tanks' inside
-100% TIG welding with pure argon gas shield
-Dome top and cone bottom, bottom cone, 60 degree
-Top manway
-Working pressure: 0.2Mpa
-Test pressure: 0.3Mpa
-Bung apparatus
-Relief/vacuum valve on top
-Sample valve
-Rotating racking arm on cone with butterfly valve
-Inside CIP arm with 360° coverage CIP spraying ball
-Thermowell with high accuracy temperature sensor: PT100
-Discharge arm with butterfly valve


Polishing&Welding

Polishing: All fine polishing to 0.4~0.6um without dead corner for all tanks.

Welding: All TIG welding with pure argon gas protection.
