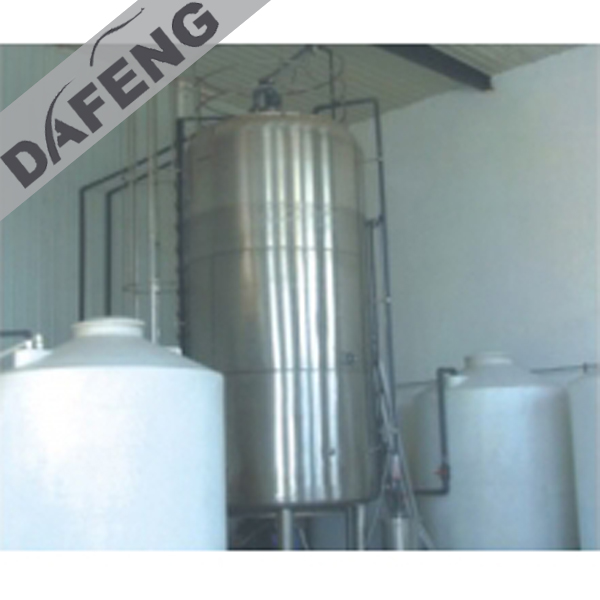

AAF type self-priming fermentation tank

Home > Biological Extractors > AAF type self-priming fermentation tank

[Return Home] [Go Back]

Product Name:
AAF type self-priming fermentation tank
Model No.:

Product Description

AAF type self-priming fermentation tank is divided into two kinds, one kind is AAF - type I and the type of equipment is completelly self-priming air, oxygen to the microorganism fermentation process;Another kind is the AAF - II type, the type of self-priming fermentation tank need outside with blower air supply.AAF type
Self-priming fermentation tank USES a double mechanical seal to ensure the sealing surface is not leak;Fermentation products according to its self-priming fermentation tank and tank capacity difference, heat transfer means has jacketed outside, inside dish tube, plate heat exchanger cycle, etc.
Working principle:
AAF type self-priming fermentation tank main feature is placed at the bottom of the tank gas-liquid mixing reinforcement, it is composed of many of prismatic hollow impeller and stator which surround the impeller.The rotation of the rotor inhaled air automatically, in the mixing chamber and the fermented liquid mix, gas is dispersed into small bubbles (about 200 microns in diameter), forming huge interface of gas-liquid mass transfer, and gas-liquid mixed flow in jet dispersion in the fermented liquid main body.Strong turbulence is formed within the fermentation tank, causing the perfect oxygen [OTR is as high as 3.5 to 7.0 (Kg, M - 3, hr - 1)].
Product features:
Matchs outside without air source, or only to replace conventional air compressor gas blower, saving investment, high efficiency and energy saving, energy saving effect is remarkable.For example, the legal system of vinegar liquid fermentation raw material utilization ratio as high as 95%, produces 10% of the white vinegar, 1 liter power consumption only 0.03 kWh.
Areas of application:
Self-priming fermentation tank is widely used in aerobic and facultative aerobic fermentation process primary metabolites.AAFI type self-priming successfully applied to liquid method acetic acid fermentor industrial production;AAF - type II equipped with blower used for yeast, PHB (poly hydroxybutyrate) products such as industrial production obtained great success.
Our company provides AAF type two series self-priming fermentation tank to produce three product, the biggest single tank capacity of 150 m.The company products industry applications: bacterial fermentation, acetic acid fermentation);Yeast fermentation (medicinal yeast, baker's yeast, feed yeast).
