Reactor

Stainless steel Reactor is one of the typical reactive equipment in chemical, pharmaceutical and foodstuff industries. It accelerates chemical reaction by mixing two or more types of liquid, or liquid and solid or gas materials of certain capacity with stirrer under certain pressure and temperature. It is often accompanied by heat effect. The heat required is input or exhausted by heat-exchanging device..

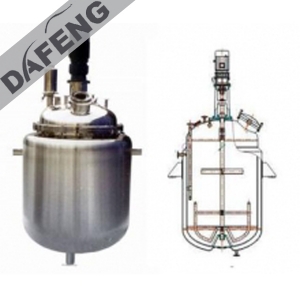

The Reactor mainly consists of tank, jacket and stirring system. The stirring type is mostly gate type, ensuring materials fully mixed within short time; The sealing is mechanical type, keeping pressure in tank and preventing materials in tank from leaking and resulting in unnecessary pollution. The parts in contact with material are made of OCr18Ni9 or 316L stainless steel in conformity with sanitary standard for medicine.

Reactor is suitable for pharmaceutical, biotechnology, fine chemical industry, chemical synthesis, etc.Material adopts SUS304 or SUS316L.Tank is equipped with the jacket, jacket structure is divided into standard jacket and outside dish tube jacket and collaterals plate cellular jacket three to choose from.Heating, cooling, inner surface USES the mirror polishing, no health dead Angle, totally enclosed design to ensure that the material is always in aseptic condition.Head (taper) are spinning processing, in accordance with cGMP standards.Stirring device adopts the health level of mechanical seal, container, polyurethane (pu) or aluminum silicate insulation interface USES the ISO standard quick clamp, convenient health, dubian the spinning processing, surface polishing, sandblasting, grinding or cold rolling a variety of forms such as primary inferior smooth, make the reactor in any field can show its excellent quality.Device equipped with aseptic air breathing apparatus, CIP cleaning nozzle, audition, flange quick-opening manhole device.
