Detailed Product Description

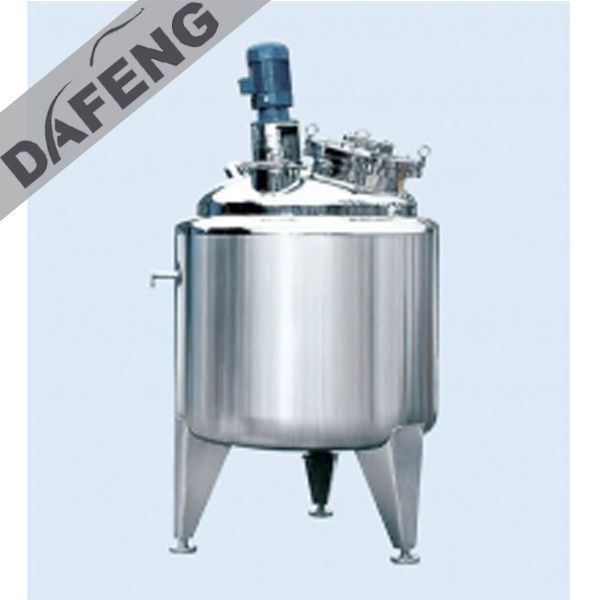

NX Thick & thin Mixing tank/blending tank

NX Thick & thin Mixing tank/blending tank is  mainly  used  for  the  large  transfusion, smal l   inject ion  as  wel l   as  solut ion,
sterilization and preparation etc.

PERFORMANCE

1.The series of equipment have the functions of  heating,  cooling,  heat  preservation  and
mixing  preparation.  The  vessel  carries  out design  and  processing  according  to
"Technical condition  for steel made pressure vessel".

2.The specifications for selection are 0.05-5.0m3 different volumes. It can also carry out
the  design  and  processing  according  to  the actual   technology  requi rements  of
customers.

3.Adopt  interlayer  structure,  with  the advantages  such as  large heating area and
small welding etc.

4.The  shaft  seal  adopts  sanitary  level  hard alloy  and  silicon  carbide  204  balancing
mechanical  seal, which  is anti-abrasion and anti-press. The  rotation  speed  is  60-82  r/m,
and  the  speed  can  also  be  regulated  by frequency converter.

5.The  interface  adopts  internationally general-use  standard  ISO  standard  rapid
installationchuck  type,  and  the  material  is imported 316L or 304. The mirror polishing of
internal  surface  Ra≤ 0.28μ m,  and  the external surface adopts semi-luster polishing
or mirror polishing treatment.

6.The  liquid  meters  for  selection  are  glass tube liquid meter, static pressure sensor type

7.The  structure  forms  are  divided  into upward  and  downward  round  sealing  head
or downward reverse convex bottom upward round  sealing  head  structure,  which  can
guarantee no residual of liquid medicine.

8.  The  jacket  structure  forms  for  selection are  divided  into  standard  jacket,  external
coiled tube jacket, and honeycombed jacket.The  structure  is  the  combination  of  upward
and  downward  round  sealing  head  and standard  layer  jacket.  It  has  large  jacket
space  and  large  heating  area,  which  can reduce  the  welding  seam.  The  internal
bladder is neat, which can guarantee that the material will not be hung on  the wall.  It has
advantages  such  as  beautiful  appearance, simple  structure  and  durabi l i ty.   The
disadvantage  is  that  it  is  too  high. Additionally,  if  changing  the  reducer  as
horizontal worm gear reducer, the height can be reduced for about 250-330mm.
