Type 2 MSF high dissolved oxygen fermentation tank is our patent products (ZL200520074807.6), the product will be self-priming air and liquid
Hybrid reinforcement alternatives to traditional mechanical stirring fermenter air distributor, gas supply system in accordance with the requirements of the fermentation process can use blower or low pressure air compressor;Fermentation tank top still assembly is suitable for mixing oar combination, bottom of gas-liquid mixing strengthening and the upper part of the impeller group synergies, oxygen to ensure high efficiency in the fermentation process.
Working principle:

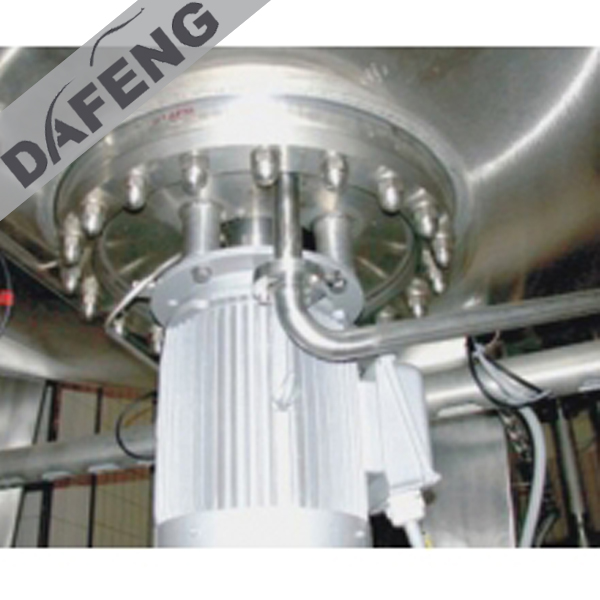

At the bottom of the fermentation tank assembly self-priming gas-liquid mixing reinforcement, it is composed of rotor rotating, automatic suction air in the mixing chamber and the fermented liquid mix, gas is dispersed into small bubbles (about 200 microns in diameter), the formation of huge interface of gas-liquid mass transfer, the gas-liquid mixed flow in jet dispersion to the fermented liquid, in the body of fermentation tank is capped with a mixing system at the same time, the two organic combine, high dissolved oxygen and mixed.
Product features:
Mass transfer mixed strong, can meet many high dissolved oxygen mixed fermentation products, high density cultivation of logarithmic phase can significantly improve the microbial status by the lack of dissolved oxygen.Areas of application: especially suitable for high dissolved oxygen requirements of high density, high biomass, is not sensitive to shear the cultivation of the system.The company type 2 MSF high dissolved oxygen fermentation tank industrial application example: bacteria fermentation (high density high expression of cultivating genetically engineered e. coli);Yeast fermentation (genetically engineered pichia high-density culture).
